Authentication in scanned applications¶

Authentication verification mechanism¶

Performs periodic verification of session validity using the configuration in JSON format.

The configuration contains an array of criteria for verifying the validity of the session. The mandatory fields are request, responseConditions with the nested mandatory fields url and statusCode respectively.

Regardless of its type, the criterion is considered fulfilled if and only if all the specified conditions are met. The number of verification rounds affects the authentication decision as follows:

the criterion is considered PASSED ⇔ authentication is considered failed if the criterion is not fulfilled N times in a row;
the criterion is considered FAILED ⇔ authentication is considered failed if the criterion is fulfilled N times in a row.

Configuration¶

Type	Default value	Valid values	Description
`kind` *
string	not specified	`"FAILED"`, `"PASSED"`	Indicates whether the criterion is met - authentication passed or not
`request.url` *
string	not specified		The absolute URL of the criterion subject request
`request.method`
string	`GET`	`"GET"`, `"HEAD"`, `"OPTIONS"`, `"TRACE"`, `"PUT"`, `"DELETE"`, `"POST"`, `"PATCH"`, `"CONNECT"`	The method of the criterion subject request
`request.headers`
object	not specified		The criterion subject request headers in the key-value format `("Content-Type": "application/json")`
`request.body`
string	not specified		The body of the criterion subject request
`responseConditions.statusCode` *
integer	not specified		The HTTP status of the criterion subject response. Not equal ⇒ criterion not met
`responseConditions.body`
string	not specified		The regular expression for criterion subject response body matching. Unmatched regexp ⇒ criterion not met
`responseConditions.headers`
object	not specified		The `(name, regexp)` pairs for criterion subject response header matching. Any unmatched ⇒ criterion not met
`interval`
string	`"10s"`	Any number with the `s` suffix	The time interval between criterion checks using seconds, e.g. `"0.5s"`, `"1s"`, `"10s"`
`rounds`
integer	`5`		The number of criteria checks to ensure that authorization has failed

* Fields marked with “*” are required.

Configuration example¶

[
  {
    "kind": "PASSED",
    "request": {
      "url": "http://api.e-shop.com/profile"
    },
    "responseConditions": {
      "statusCode": 200,
      "headers": {
        "Content-Type": "application/json"
      }
    },
    "interval": "7s",
    "rounds": 3
  },
  {
    "kind": "FAILED",
    "request": {
      "url": "http://api.e-shop.com/"
    },
    "responseConditions": {
      "statusCode": 200,
      "body": ".*Unauthorized.*"
    },
    "interval": "1s",
    "rounds": 7
  },
  {
    "kind": "FAILED",
    "request": {
      "url": "http://api.e-shop.com/"
    },
    "responseConditions": {
      "statusCode": 403
    },
    "interval": "1s",
    "rounds": 7
  },
  {
    "kind": "PASSED",
    "request": {
      "method": "POST",
      "url": "http://api.e-shop.com/endpoint/",
      "headers": {
        "Content-Type": "application/json"
      },
      "body": "{\"data\": \"here\"}"
    },
    "responseConditions": {
      "statusCode": 200
    }
  }
]

Updating authentication data with an HTTP request¶

Periodic refreshing of sessions is performed using the JSON configuration. This only works in conjunction with the authentication verification mechanism.

This configuration describes how to perform an HTTP request to refresh a session in any of its manifestations, and the way to configure new authorization parameters with updated data.

Configuration¶

Type	Default value	Valid values	Description
`request.url` *
string	not specified		The absolute URL of the session-refresh endpoint. This field is mandatory
`request.method`
string	`"GET"`	`"GET"`, `"HEAD"`, `"OPTIONS"`, `"TRACE"`, `"PUT"`, `"DELETE"`, `"POST"`, `"PATCH"`, `"CONNECT"`	The HTTP method of the session-refresh endpoint
`request.headers`
object	not specified		The `"key": "value"` pairs which specify additional headers for a session-refresh request
`request.body`
string	not specified		A string representation of the HTTP body needed for a session-refresh request
`request.timeout`
string	`"10s"`	Any number with the `s` suffix	The timeout configuration for session-refresh request using seconds, e.g. `"0.5s"`, `"1s"`, `"10s"`
`responseExtractors` *
array	not specified		Describes how the endpoint response is processed for a session update. An array, each element of which describes a single strategy of extraction
`responseExtractors[].extractor` *
string	not specified		Contains a regular expression in RE2 format, corresponding to the extracted data for the current element of the `responseExtractors` array. This field is mandatory for each element of the `responseExtractors` array. The regular expression searches for matches in the response body and headers in the format `Header-Key: Header-Value`. The search continues until the first match, after which it stops
`responseExtractors[].proxyParams`
object	not specified		a description of the hook which will be added after successful data extraction. Field is an object, which allows the `cookie`, `header`, `httpAuth` and `jsonReplacer` keys. This field is mutually exclusive with `responseExtractors[].placeholderVariableName`
`responseExtractors[].proxyParams.cookie`
object	not specified		Valid keys: `schema`, `hostname`, `port`, `path`, `name`
`responseExtractors[].proxyParams.header`
object	not specified		Valid keys: `schema`, `hostname`, `port`, `path`, `name`
`responseExtractors[].proxyParams.httpAuth`
object	not specified		Valid keys: `schema`, `hostname`, `port`, `path`, `username`
`responseExtractors[].proxyParams.jsonReplacer`
object	not specified		Valid keys: `schema`, `hostname`, `port`, `path`
`responseExtractors[].proxyParams.[cookie,header,httpAuth,jsonReplacer].schema`
string	from base URL		The schema (network protocol) used for authentication in the scanned application
`responseExtractors[].proxyParams.[cookie,header,httpAuth,jsonReplacer].hostname`
string	from base URL		Hostname in any valid variant: domain (including with subdomains), IPv4 or IPv6
`responseExtractors[].proxyParams.[cookie,header,httpAuth].path`
string	from base URL		The path for authentication in the scanned application
`responseExtractors[].proxyParams.[cookie,header,httpAuth,jsonReplacer].port`
string	from base URL	`"0"`–`"65535"`	The port number for authentication in the scanned application
`responseExtractors[].proxyParams.[cookie,header].name` *
string	not specified		The name of the header or the cookie whose values will be replaced by the extracted data
`responseExtractors[].proxyParams.httpAuth.username` *
string	not specified		Describes the username for HTTP Basic where the extracted data will be replaced by a password
`responseExtractors[].proxyParams.jsonReplacer.path` *
string	from base URL		Describes the path to the JSON keys to change the values using the extracted data
`responseExtractors[].placeholderVariableName`
string	not specified		The name of the key where the extracted data will be stored. This data will be used in the next session-refresh request in the relevant templated parts of the HTTP request. Use case: changing the refresh token after each session refresh. This field is mutually exclusive with `responseExtractors[].proxyParams`
`responseExtractors[].valueTransformationTemplate`
string	not specified		Describes the context corresponding to the {{ .Matched }} placeholder, the templated part of which is substituted for the extracted data. This context is displayed in the HTTP request to update the session in the placeholder corresponding to the `responseExtractors[].placeholderVariableName` value. Usage example: The extracted data should be used in the `Authorization` header, but the value is returned without the `Bearer` prefix. The context will look like `Bearer {{ .Matched }}`
`placeholdersInitValues`
object	not specified		Contains `"key": "value"`pairs which will be used in the template rendering of the `request` field of the HTTP request. All key-value pairs must be filled in with initial values which will be used during the first session-refresh request. For other session-refresh requests, values will be rewritten using the extracted data with the corresponding `responseExtractors[].placeholderVariableName` key
`dropHooksBeforeRefreshRequest`
boolean	`false`	`true`, `false`	Indicates whether to remove authentication data (proxy hooks) retrieved by the refresher before executing next HTTP request for a refresh

* Fields marked with “*” are required.

Configuration examples¶

{
  "request": {
    "url": "http://example.com/login",
    "method": "POST",
    "body": "login=admin&password=secretpass"
  },
  "responseExtractors": [
    {
      "extractor": "Set-Cookie:.*session_token=(.*);",
      "proxyParams": {
        "cookie": {
          "name": "session_token"
        }
      }
    }
  ]
}

{
  "request": {
    "url": "http://api.example.com/refresh-with-token",
    "method": "POST",
    "body": "{\"authData\": {\"refreshToken\": \"{{ .RefreshToken }}\"}}"
  },
  "responseExtractors": [
    {
      "extractor": "{\"token\": \"(.*)\",}",
      "proxyParams": {
        "header": {
          "name": "X-Auth",
          "hostname": "api.example.com"
        }
      }
    },
    {
      "extractor": "\"authData\": {\"refreshToken\": \"(.*)\"}",
      "placeholderVariableName": "RefreshToken"
    }
  ],
  "placeholdersInitValues": {
    "RefreshToken": "c2712990-ec19-414b-8be0-8a66e9271253"
  }
}

{
  "request": {
    "url": "http://example.com/refresh-with-token",
    "method": "POST",
    "body": "{\"authData\": {\"refreshToken\": \"{{ .RefreshToken }}\"}}"
  },
  "responseExtractors": [
    {
      "extractor": "{\"token\": \"(.*)\"}",
      "proxyParams": {
        "header": {
          "name": "Authorization"
        }
      },
      "valueTransformationTemplate": "Bearer {{ .Matched }}"
    },
    {
      "extractor": "\"authData\": {\"refreshToken\": \"(.*)\"}",
      "placeholderVariableName": "RefreshToken"
    }
  ],
  "placeholdersInitValues": {
    "RefreshToken": "c2712990-ec19-414b-8be0-8a66e9271253"
  }
}

Updating authentication data with browser script¶

Periodic refreshing of sessions is performed using the JSON configuration and the browser script, recorded with Chrome DevTools Recorder. An entity called a browser authenticator executes a browser script, then transmits the Cookie and the browser's local storage status at the time of script completion to the scanner. The configuration file should describe how the received Cookie and local storage will be used in the updated authentication data. It only works in combination with the authentication verification mechanism. It is mutually exclusive with the mechanism for updating authentication data with an HTTP request.

Configuration¶

The configuration regulates the execution of the browser script and describes how to configure new authentication parameters with updated data.

Type	Default value	Valid values	Description
`browserAuthenticatorName`
string	`"fuchsia-browser-authenticator"`		Base name of the browser authenticator executable file. It is recommended to leave this field empty. The required value is set by default
`loginScript`
object	not specified		An object which describes the browser script. When creating a scan via `fuchsiactl`, it is recommended not to fill in this field and use the `--file=@browserAuthenticator:loginScript@/path/to/script.json` flag. Scanning via the HTTP API is only possible with a key indicating the location of the file. When running via the dashboard, this field is filled in by uploading the script file in the parameters of the scanned target
`outputExtractors` *
array of objects	not specified		Describes how to handle new Cookie and local storage for session updates. This is an array, each element of which describes one single data extraction strategy
`outputExtractors[].type` *
string	not specified	`"TYPE_COOKIE"`, `"TYPE_LOCAL_STORAGE"`	Data source type
`outputExtractors[].selectors`
array of strings	not specified		An array of Cookie names or local storage keys that must be present to the browser authenticator after the browser script is executed. If the array is not empty, then if at least one of its elements is missing in the browser authenticator output, the authentication data update will be considered failed. Required if the `outputExtractors[].extractSelectorsOnly` field is specified
`outputExtractors[].extractSelectorsOnly`
boolean	`false`	`true`, `false`	A flag indicating whether to take all the data from the browser authenticator output or only those which matched the selectors. The `true` value is valid only if the `outputExtractors[].selectors` array is not empty
`outputExtractors[].proxyParams`
object	depends on data source type		A description of the authentication mechanism that will be added after successful data extraction. This field can only be set if the value of the `outputExtractors[].type` field is specified as `"TYPE_LOCAL_STORAGE"`. If this parameter is empty, an authentication mechanism will be created for this type using the entire updated local storage (accurate to `outputExtractors[].selectors` and `outputExtractors[].extractSelectorsOnly`) in order to transfer the content to browser modules. If `outputExtractors[].type` field is specified as `"TYPE_COOKIE"`, then extracted Cookies automatically create a new authentication mechanism that adds them to the authentication data, taking into account the `Domain` and `Path` properties. In all other cases, the field allows `cookie`, `header`, `httpAuth` and `jsonReplacer` keys
`outputExtractors[].proxyParams.[cookie,header].name` *
string	not specified		The name of the header or the name of the cookie file, the values of which will be replaced by the extracted data
`outputExtractors[].proxyParams.httpAuth.username` *
string	not specified		The username for basic HTTP authentication, for which the extracted data will be replaced with a password
`outputExtractors[].proxyParams.jsonReplacer.path` *
string	not specified		Specifies the path for replacing values in the JSON bodies of outgoing scanner requests. It is applied only if the following conditions are met simultaneously: the request body is fully presented in JSON format, the specified JSON path exists in the structure. If the conditions are met, the value along the specified path is replaced with data from the extracted source
`responseExtractors[].valueTransformationTemplate`
string	not specified		It is supported only if the following conditions are met simultaneously: the `outputExtractors[].type` field value is specified as `"TYPE_LOCAL_STORAGE"`, `outputExtractors[].proxyParams` field is not empty. The field specifies a template in the context of which, using `go text/template` the extracted values will be processed. The result is a string inserted in the `outputExtractors[].proxyParams` field. The keys of the pairs extracted from the local storage act as placeholders. For example, the token extracted by the key `"authToken"` must be inserted into the header as follows: `Authorization: Bearer <token>`. Then this field will take the `Bearer: {{ .authToken }}` value, and `outputExtractors[].proxyParams` will contain a `{"header": {"name": "Authorization"}}` object. You can use more than one placeholder. It is strongly recommended to use the `{{ index . "some-name" }}` form for passing to a template string, because for a template engine, for example, “`-`” is a service character, therefore, in the `Bearer: {{ .some-name }}` form the template will not be processed successfully

* Fields marked with “*” are required.

Configuration examples¶

Retrieving all Cookie if there is at least one named “token” among them:

{
  "output_extractors": [
    {
      "type": "TYPE_COOKIE",
      "selectors": ["token"]
    }
  ]
}

Extracting a Cookie named "token”, if present:

{
  "output_extractors": [
    {
      "type": "TYPE_COOKIE",
      "selectors": ["token"],
      "extract_selectors_only": true
    }
  ]
}

Extracting all Cookie. Extracting local storage and transferring it to browser modules. Extracting the values for the token_secret_name and token keys from the local storage and passing them to the Authorization header according to the template. Failure for the entire update if at least one value was not found:

{
  "output_extractors": [
    {
      "type": "TYPE_COOKIE"
    },
    {
      "type": "TYPE_LOCAL_STORAGE"
    },
    {
      "type": "TYPE_LOCAL_STORAGE",
      "selectors": ["token_secret_name", "token"],
      "extractSelectorsOnly": true,
      "proxy_params": {
        "hostname": "example.com",
        "scheme": "https",
        "port": "443",
        "header": {
          "name": "Authorization"
        },
        "value_transformation_template": "Bearer {{ .token_secret_name }}||{{ .token }}"
      }
    }
  ]
}

Recording a browser script¶

Google Chrome browser is required to record the browser script. The sequence of actions is described in the Chrome Developer Documentation. In this section, it is specified in order to obtain the highest quality script recording.

The following is used as a demonstration example: http://juiceshop.stands.appsecuritytesting.fun/.

Open the Google Chrome browser in incognito mode.

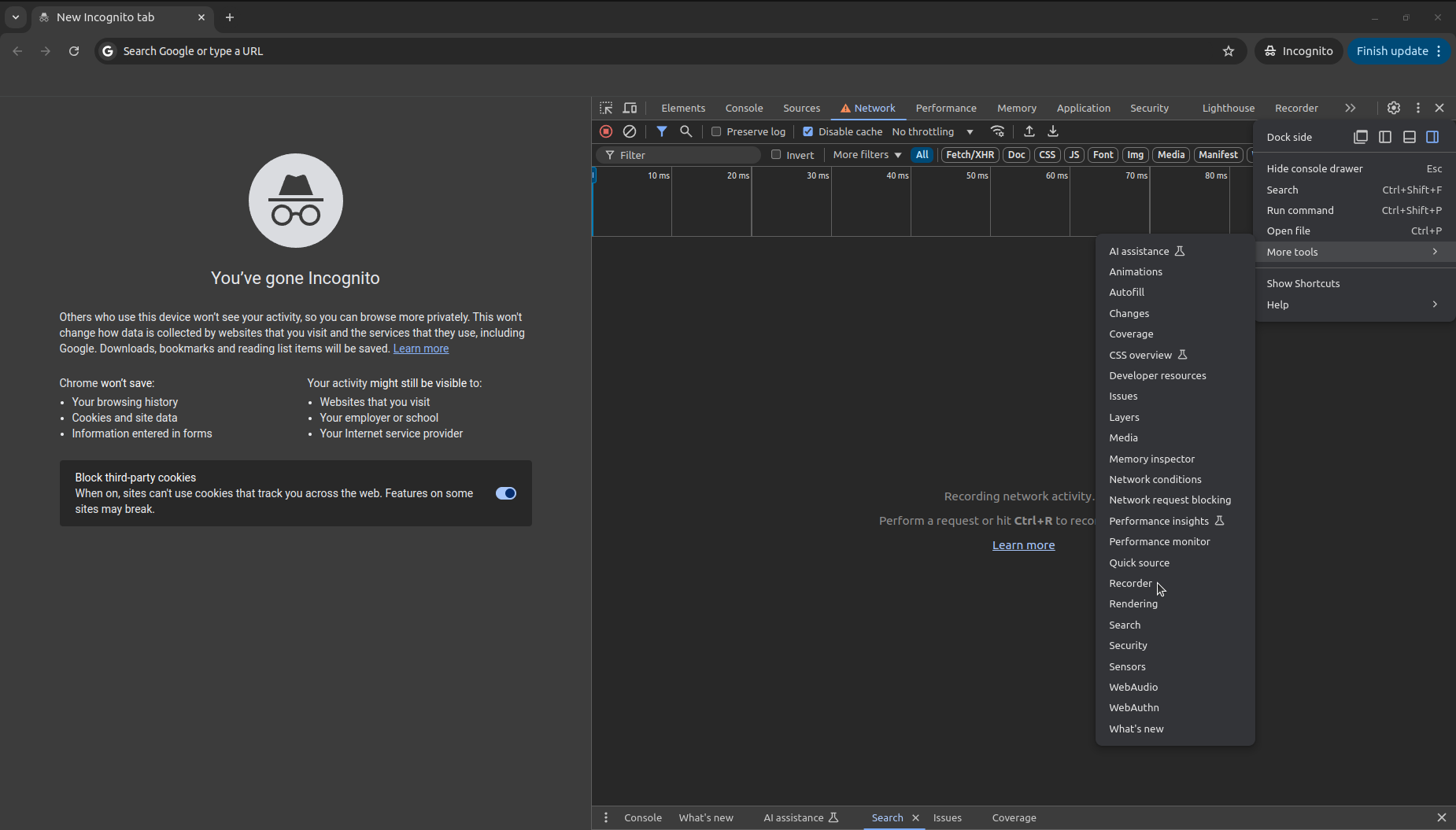

Press “F12” to open Chrome Developer Tools → click “⋮” in the upper right corner → select “More Tools” → press “Recorder”.

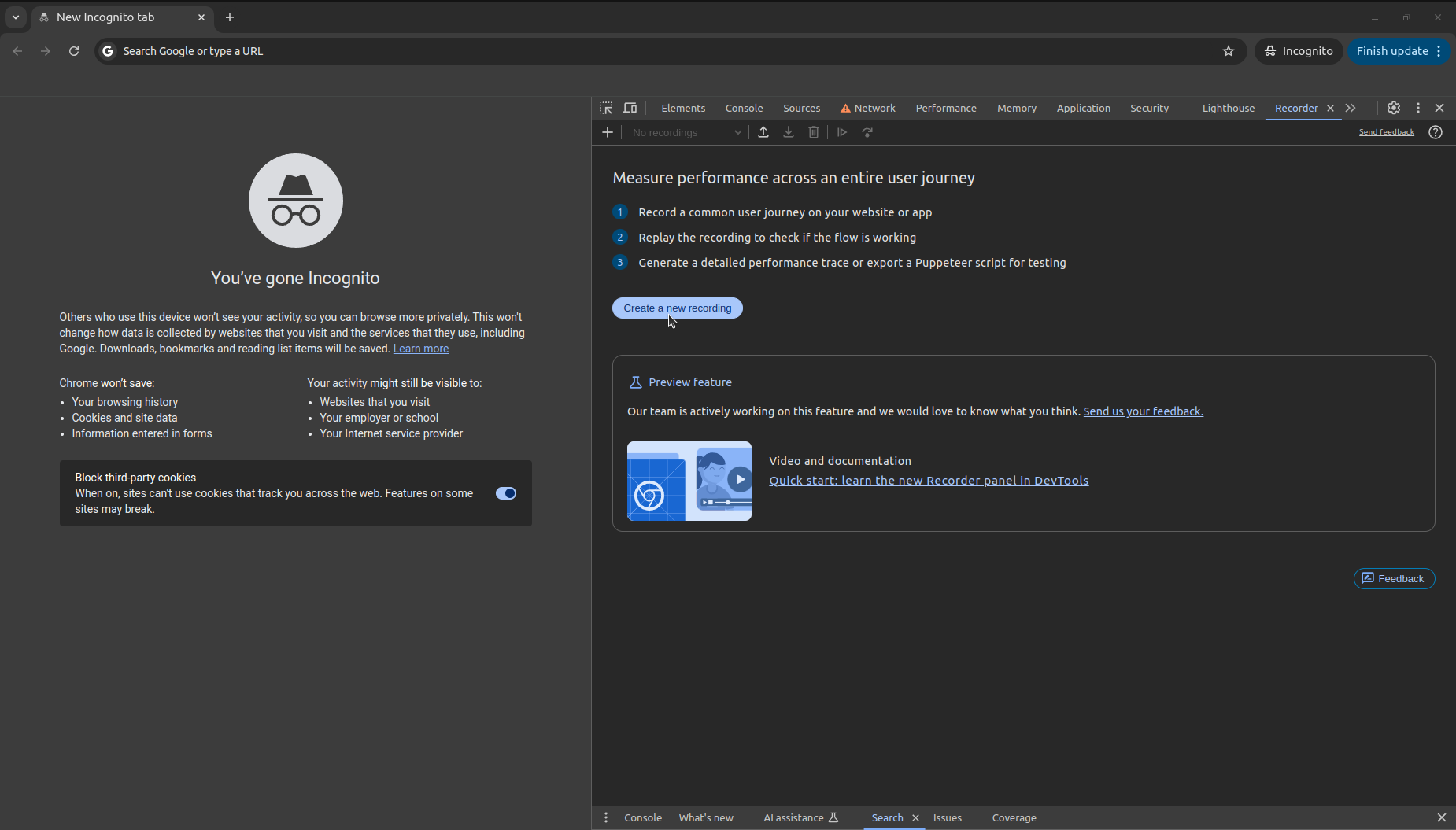

Press “Create a new recording”.

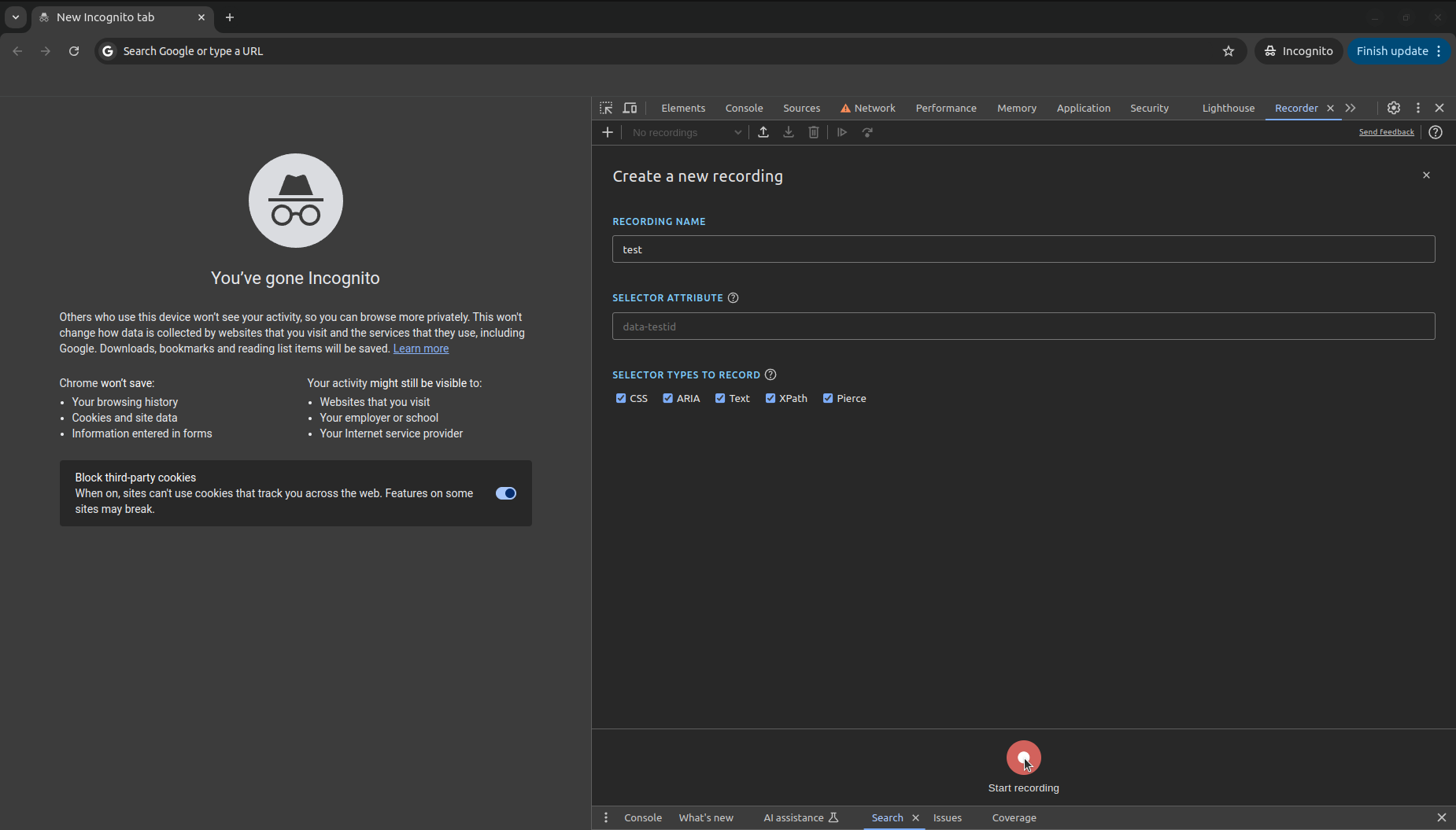

Enter a name for the future script and press “Start recording”.
Go to the authentication page, enter the required credentials, log in, and press “End recording”.

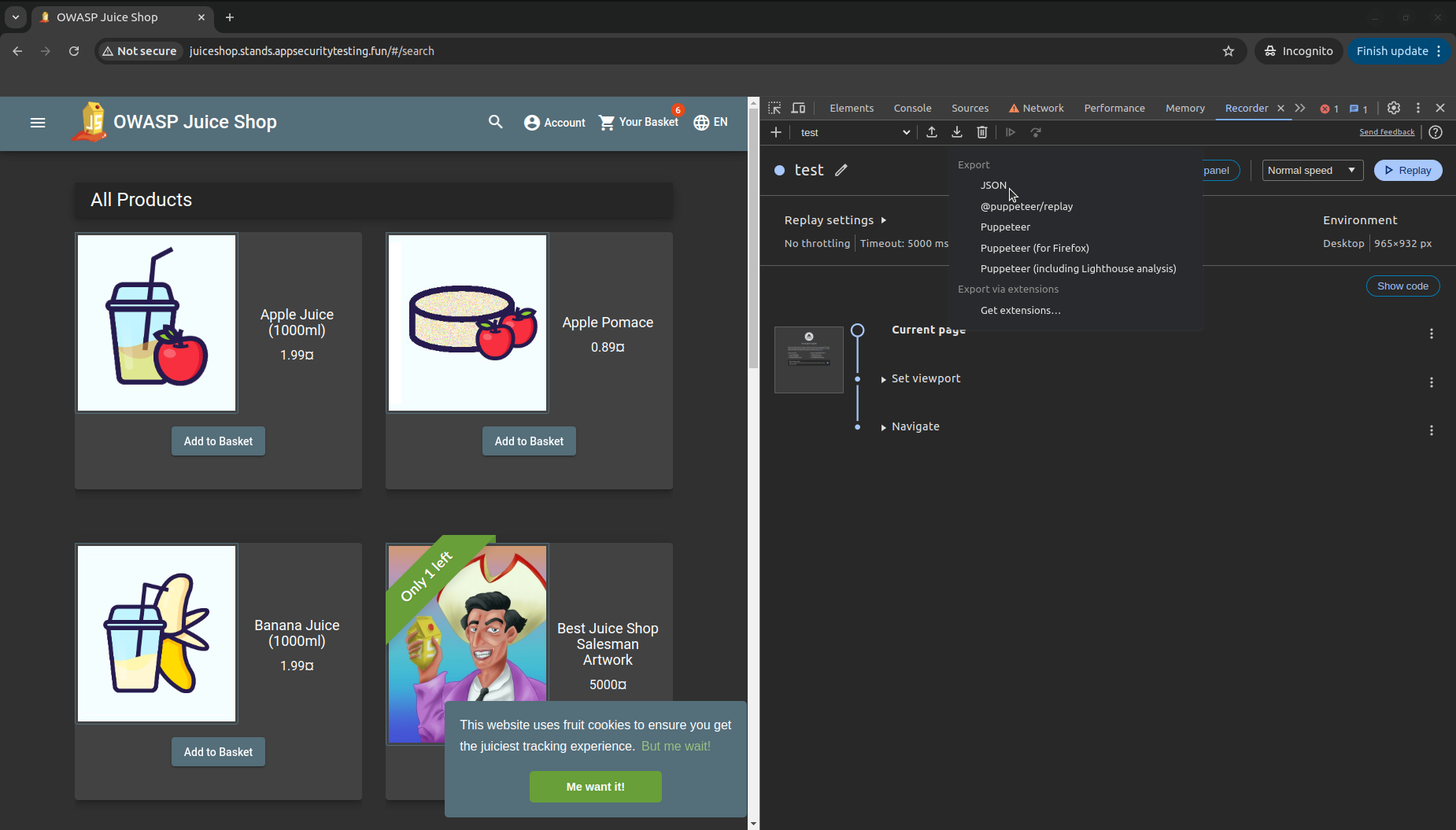

Export the resulting record in JSON format.

The resulting file is a browser script required to update the scan authentication data.
